A Maintenance Guide to Improve Mold Performance

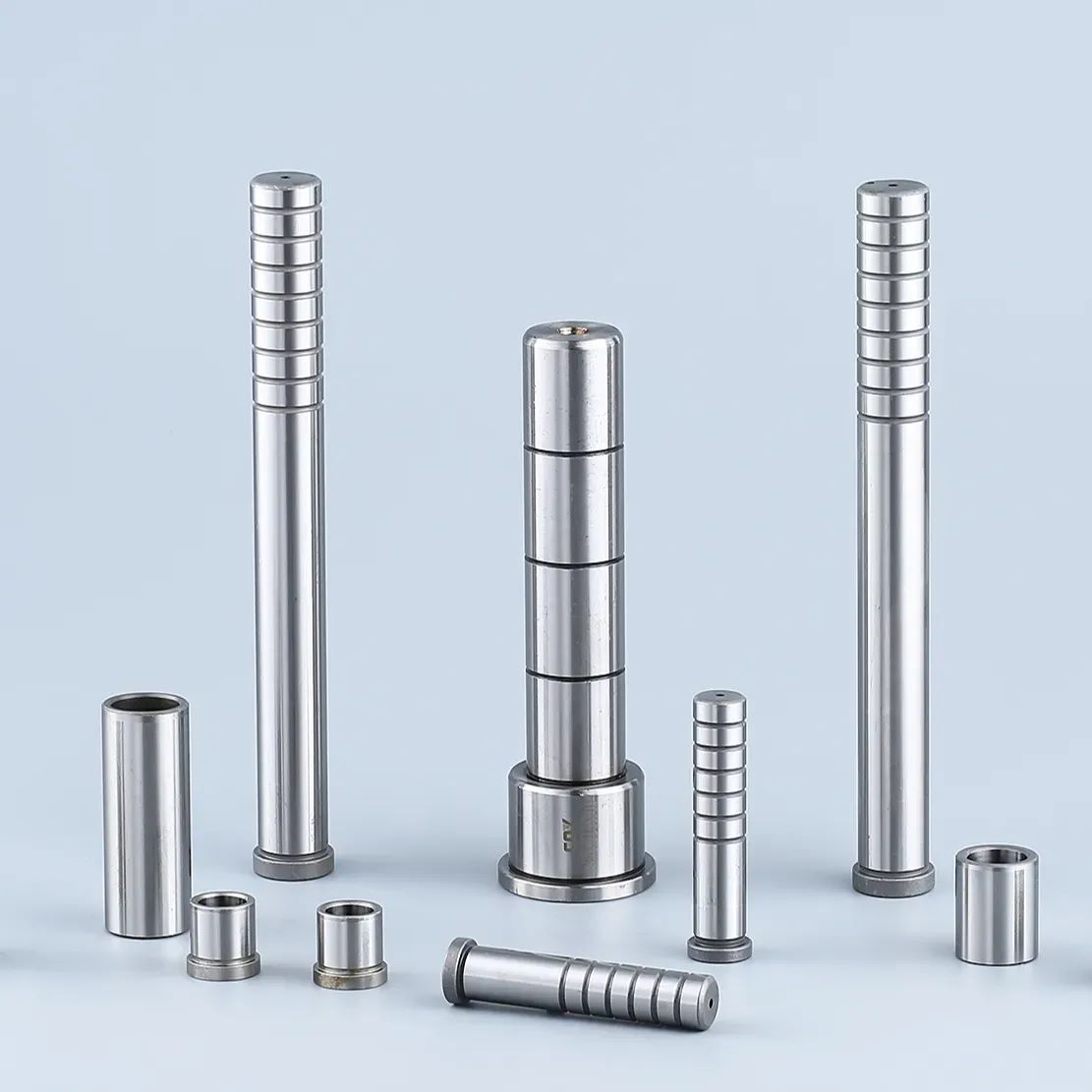

1. Identifying Guide Pillar Wear Issues
Typical Symptoms
Difficulty in mold opening/closing requiring increased clamping force
Inconsistent part dimensions within same production cycle
Abnormal noises (squeaking/grinding sounds during operation)
Visible scoring marks along pillar surface upon inspection
Consequences of Neglect
→ Permanent loss of mold precision
→ Damage to guide bushings (higher repair costs)
→ Increased part rejection rate
2. Root Cause Analysis
2.1 Material Limitation
Low-carbon steel pillars: Soft surface (HRC20-30) prone to scoring
Poor surface finish: Rough texture accelerates wear
Solution: Upgrade to hardened materials (chrome-plated/SUJ2 bearing steel)
2.2 Lubrication Issues
Dried lubricant: Infrequent regreasing
Contaminated grease: Mixed with plastic/metal particles
Improper grease type: Standard grease unsuitable for high temps
Solution: Implement scheduled lubrication with high-temp grease
2.3 Alignment Problems
Misalignment: Eccentric movement causes uneven wear
Improper clearance: Too tight increases friction, too loose causes impact
Solution: Use dial indicators for precision installation
3. Practical Solutions

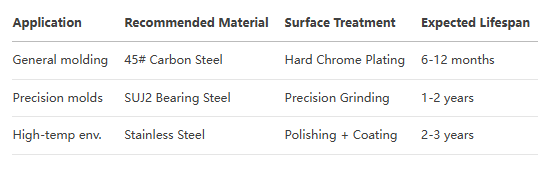

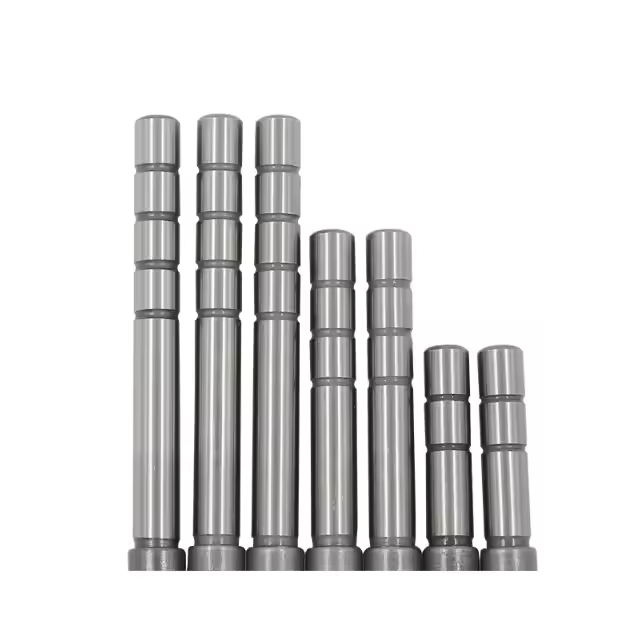

3.1 Material Selection Guide
3.2 Lubrication Protocol
Cleaning: Use kerosene + lint-free wipes
Grease Selection:
Normal temp: Lithium-based grease (NLGI 2)
High temp (>80°C): Molybdenum disulfide grease
Frequency:
Continuous production: Replenish every 3 days
Intermittent use: Weekly inspection
3.3 Maintenance Checklist
Monthly:
Measure diameter change (replace if wear >0.02mm)
Inspect bushing inner surface
Annual:
Complete disassembly for polishing
Replace wear-resistant bushings
4. Pro Tips
4.1 Quick Alignment Check
Rotate pillar 360° while measuring clearance with feeler gauges (max variance <0.01mm)
4.2 Emergency Repair
Minor scoring can be hand-polished using oilstone + diamond paste
4.3 Storage Advice
For long-term storage:
Apply rust preventive oil
Cover with protective film
5. FAQ
Q: Do guide pillars require scheduled replacement?
A: Quality pillars last 2-3 years with proper maintenance. Replace immediately if:
Deep grooves (>0.05mm) appear
Diameter reduction exceeds 1%
Visible bending deformation
Q: Can we mix pillars from different manufacturers?
A: Not recommended. Dimensional tolerances vary between brands.
Q: Is thicker grease better?
A: No. Follow viscosity guidelines:
Slow/heavy loads: NLGI 2
Fast/light loads: NLGI 1
6. Conclusion
Though small, guide pillars function as the mold's "joints." Implement:
✓ Proper material selection
✓ Systematic lubrication
✓ Regular alignment checks
Have specific guide pillar challenges? Share your experience below!
